During the session

In-game HUD

A native overlay drawn straight over the game, light enough to leave running, and laid out by dragging widgets around in the game itself.

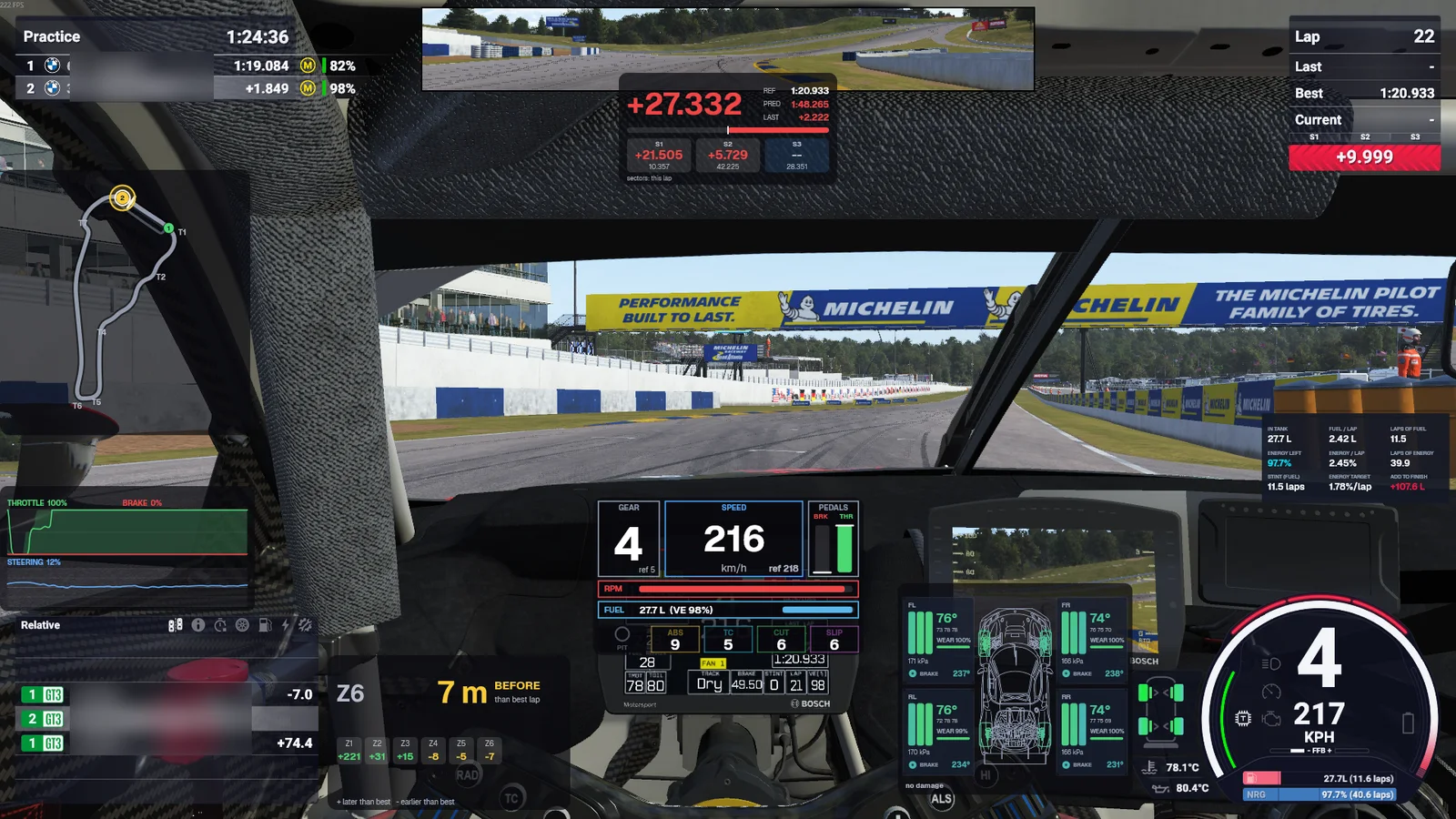

Lap delta, dash, tyres, fuel and track map drawn over the cockpit.

Drawn natively, over the game

The HUD is not a web page on top of your sim. It is drawn with Direct3D 11 and Direct2D, straight onto the monitors you choose.

  • Only monitors that show a widget get a window. The others get none.
  • Each monitor draws on its own thread, so a slower second screen does not hold back your main one.
  • While you drive, the HUD ignores the mouse completely. Clicks go straight through to the game.

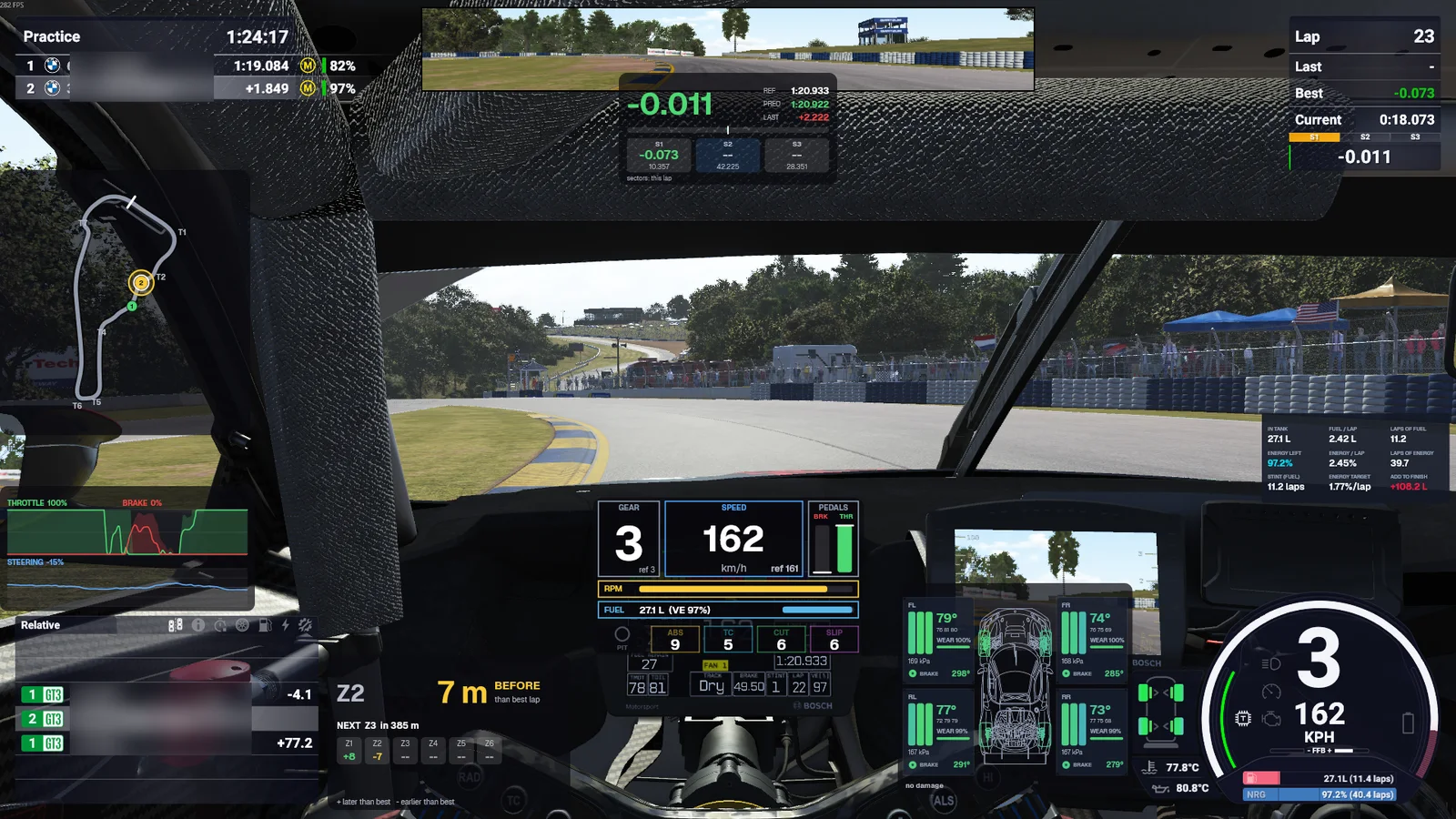

The HUD during a lap. The cockpit dash is the game's own.

Light enough to leave on

In our first in-game test session, the overlay used about 1.6% of one CPU core, and we saw no measurable change in the game’s frame rate. That was one session measured with a simple frame counter, so treat it as a guide rather than a benchmark.

Lay it out in the game

Press Alt+Shift+E and the HUD unlocks right there in the game, with a small toolbox at the top of the screen. The hotkey can be changed in HUD Studio.

  • Drag any widget to move it, or scroll over it to make it bigger or smaller.
  • Arrow keys nudge the widget you last clicked, a pixel at a time; hold Shift for 10 pixels.
  • Snap to a grid, with a slider for the grid size, and to other widgets’ edges and centres, with guide lines.
  • Click a widget to select it, Shift- or Ctrl-click to add more, and Ctrl+A to select all.
  • Pin a widget so it cannot be dragged (P), link two widgets so they move together (L), hide one (H), or show only the selection (S).
  • Ctrl+mouse wheel changes the widget’s background opacity.
  • Ctrl+Z and Ctrl+Y undo and redo layout changes, one drag or resize at a time.
  • Done locks the HUD again. Your layout is saved to your profile as you go.

A keyboard button in the toolbox lists every shortcut.

While you edit, only the widgets take the mouse. Everything around them still reaches the game.

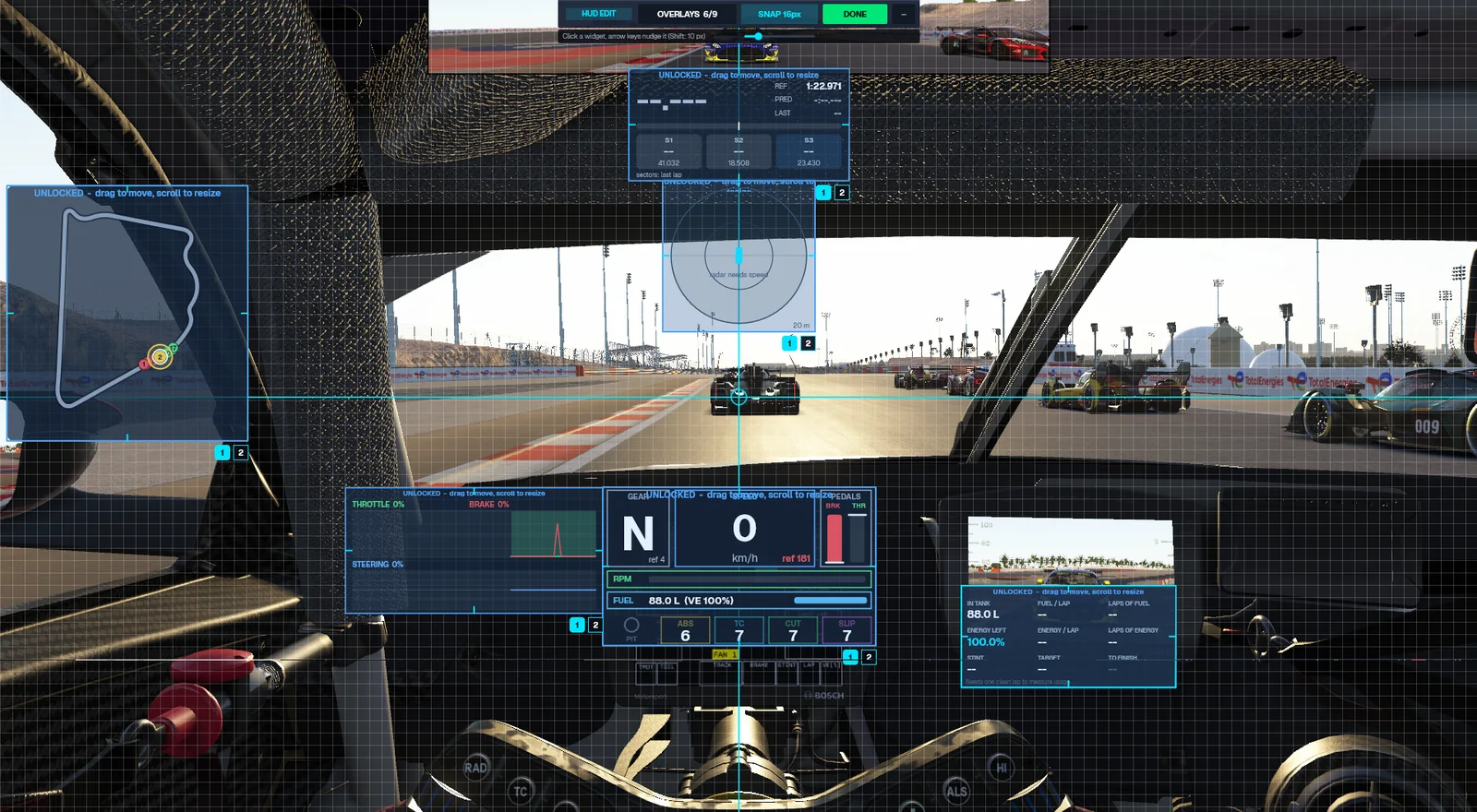

Edit mode: a grid over the game, each widget outlined. The cockpit dash is the game's own.

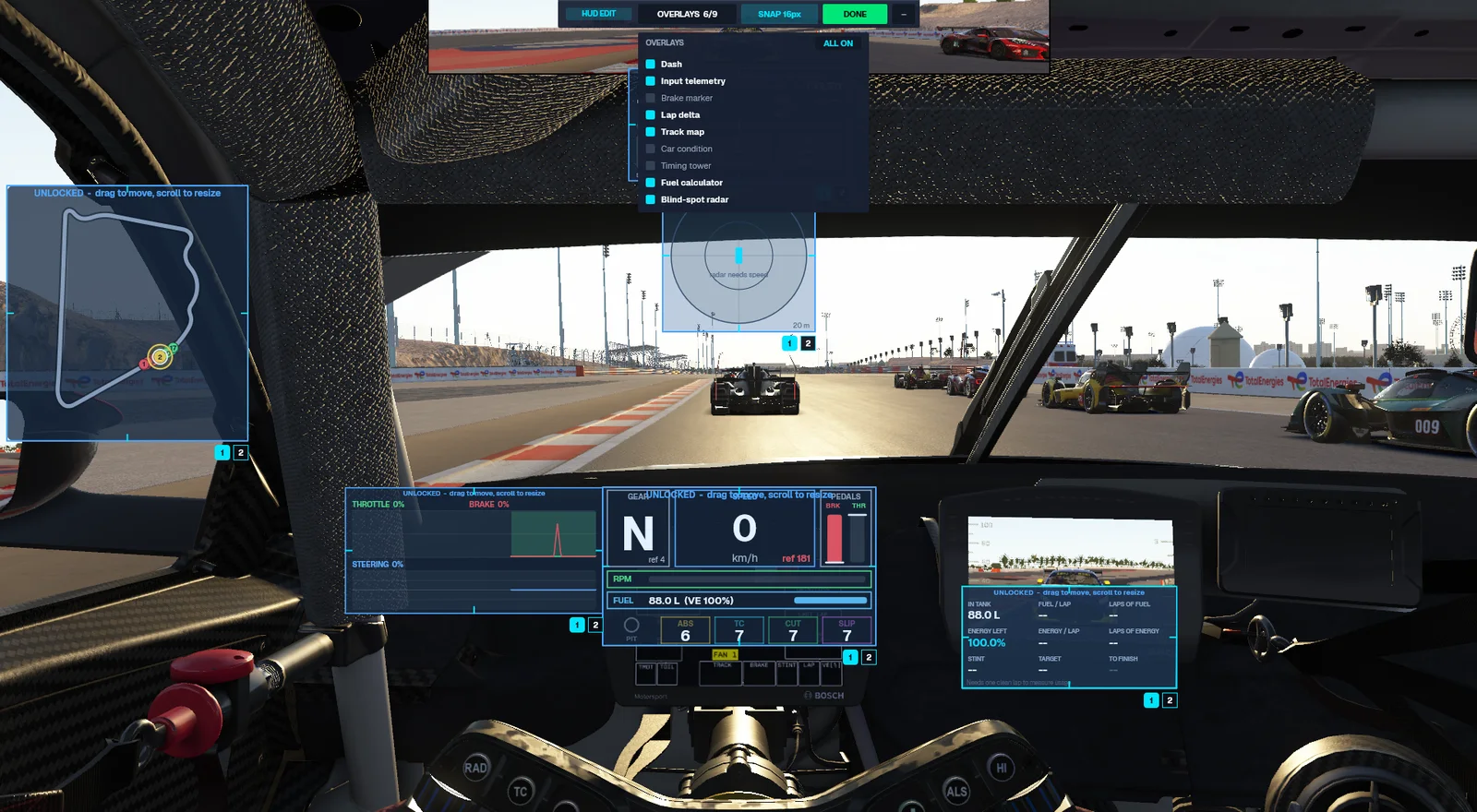

The toolbox lists every widget to show or hide.

Widgets

In the app this is HUD Studio. The widget list has a search box, All/On/Custom filters, and buttons to start from a template or create a custom widget.

  • Dash: gear, speed against a reference, pedals, RPM, fuel and virtual energy. Styles are Full, Minimal, Race and Wide
  • Lap delta: live delta, predicted lap and your sectors against a reference lap
  • Track map: the track outline with a dot for every car
  • Input telemetry: throttle, brake and steering
  • Brake marker: where you brake compared with your best lap
  • Car condition: tyre temperature, pressure and wear, brake temperature and damage
  • Radar: cars around you from above, with side warnings
  • Standings: standings around you with intervals
  • Fuel & energy: what is in the tank, use per lap, laps of fuel and energy left, and what to add to finish
  • Race control: flags and pit limiter warnings
  • Input health: pedal inputs and force-feedback clipping
  • Track & wind: track conditions and wind direction
  • Traffic forecast: encounters ahead and behind, with catch estimates

Submodules add detail to a widget:

  • Dash can add Shift lights, Rotary changes, Hybrid / battery and Fuel-save guidance
  • Input telemetry can add Pedal inputs and Steering trace
  • Brake marker can add Apex speed and Braking summary
  • Lap delta can add Sector splits and Predicted lap
  • Car condition can add Tyres, Brakes, Damage and Ride height
  • Standings can add Relative and Battle gaps
  • Fuel & energy can add Finish plan and Pit strategy
  • Race control can add Pit limiter / speed and Track limits
  • Input health can add the FFB clipping meter
  • Track & wind can add Wind

Shift lights fill toward the car’s learned shift point and show SHIFT near the limiter in a gear with no shift point yet. After an upshift the HUD says whether you shifted early, on point or late.

The widget list, a Dash preview with sample data, and the Look and Content settings.

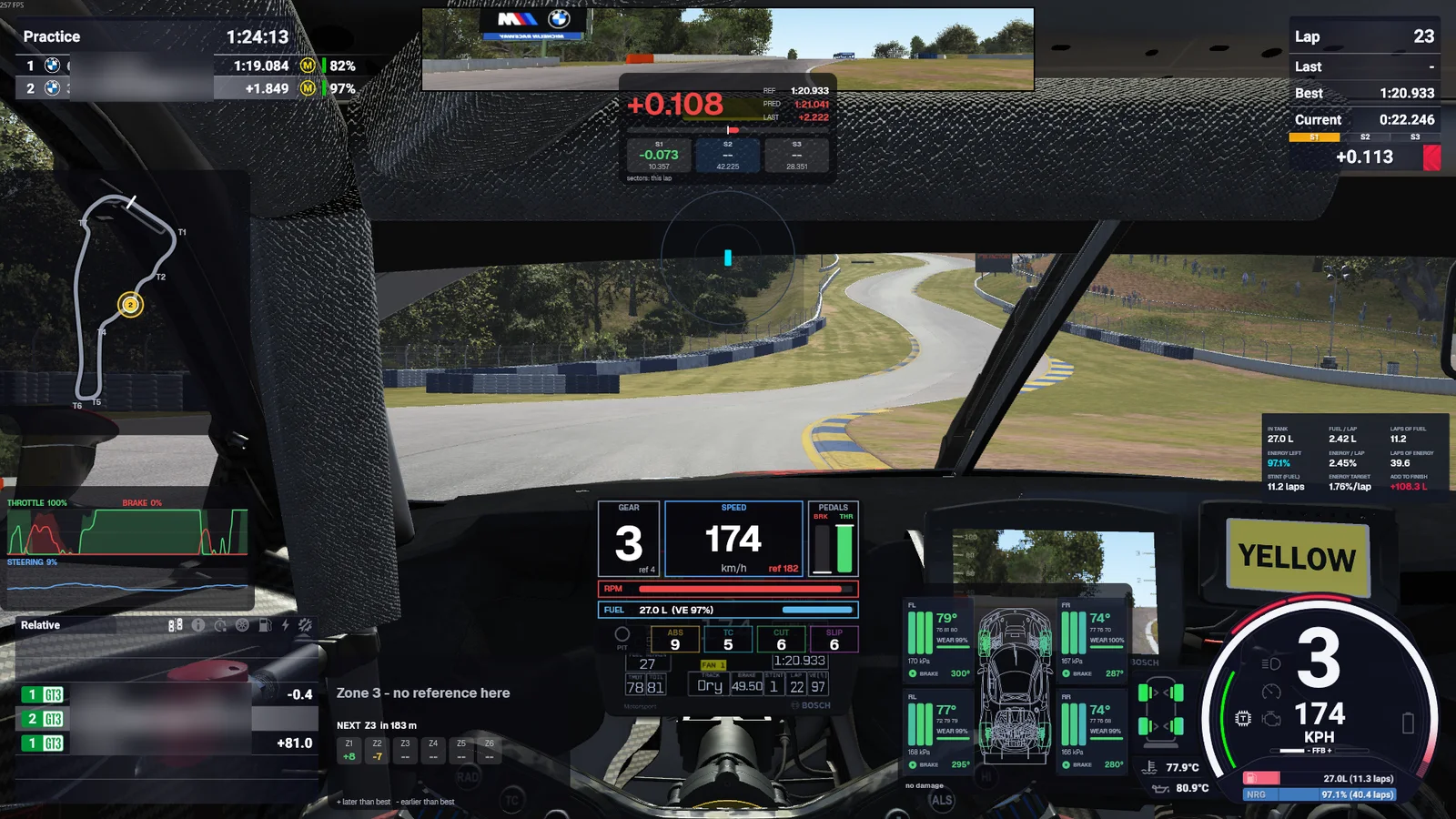

A yellow flag shown on the HUD.

Sounds

The radar can beep when a car is in your blind spot, faster and higher as the car closes and panned to the side it is on. A double beep sounds when the pit limiter is on and you are over the pit speed limit.

Turn HUD sounds on and set the volume. You can import a .wav up to 3 seconds and preview it; sounds are kept in your Documents folder, under Delta Negative.

Set it up once

Each widget has its own background opacity, size and layer order. Profiles switch per car, per class or for All cars. Choose when a widget shows: hide below a speed, only near another car, hide in the pit lane or in hard corners, show only in Practice, Qualifying or Race, or write your own conditions from live values such as speed, pedals, gear and fuel. Try everything with sample data before a session, and import and share layouts.

Good to know

  • The performance figure comes from one test session measured with a simple frame counter, not a formal benchmark. Your results depend on your PC.
  • Show and hide rules do not apply while you are editing the layout.
  • Custom widgets need the Widget Builder, which is Premium.

What is free

Included free: Every built-in widget, presets, profiles and sharing. Premium adds Widget Builder, for your own widgets.

Try everything free for 10 days · Compare plans
